SGS-S80XX** - IP65 MAGNETIC STEP LIGHT SERIES

SPECIFICATIONS

Item No: SGS-S80XX

Universal Input Voltage:90-240V

Wattage:3W

IP Rate:IP65

Type of Protection:Class I

Size mm:80*80*37

Funciton:With IR&DAYLIGHT Sensor

CCT:3000K

Materials: Body: die-casting aluminum

SGS Series- Aluminum Magnetic Cover

Color:Powder Coating: White/Grey/Black

Brushed Aluminum: Gold / Siliver / Black .

Anodising Aluminum Ti-Gold / Sky Grey

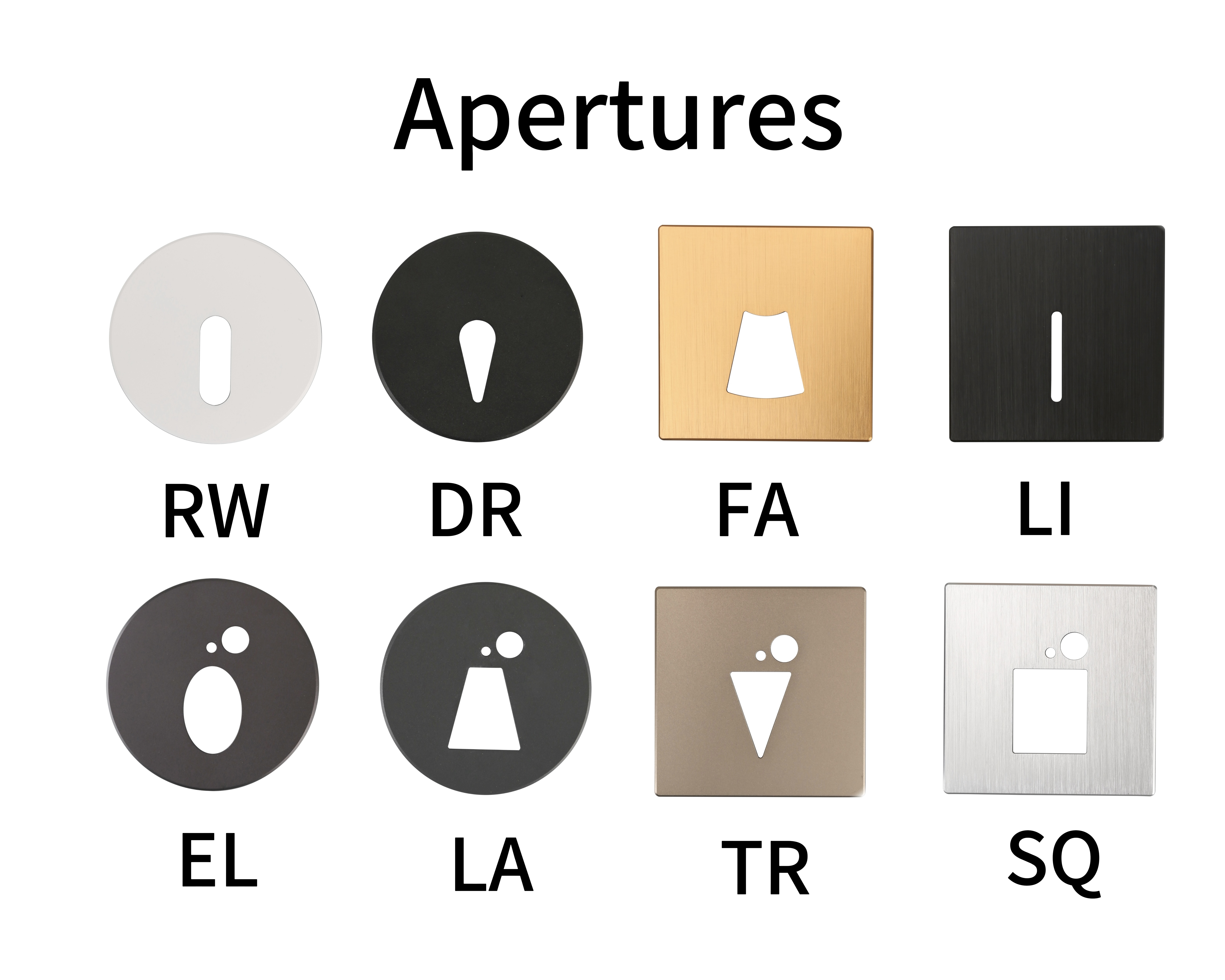

Optional aperture: LI(Line) / LA(Ladder) / EL(Ellipse) / DR:(Drop) / RW(Runway) / FA(Fan) / SQ(Square) / TR(Triangle)

Fixed with:Screw

Match wtih Cavtiy wall box: EU: Φ68 mm box(not provided)

Features : Energy saving

Easy installation

waterproof structures

Changeable magnetic cover

Remark: ** xx means there are various apertures of the surface of SGS-S80 series . The surface can be optional with different aperture as LI , LA , EL , DR , RW , FA ,SQ , TR and so on. For example , SGS-S80LA means this aperture of the surface is LA .

Step Light : Recessed wall light, stair light, stair lamp, step lighting.
