SMS-S86XX** - IP65 MAGNETIC STEP LIGHT SERIES

SPECIFICATIONS

Item No: SMS-S86XX **

Universal Input Voltage:90-240V

Wattage:3W

IP Rate:IP65

Type of Protection:Class I

Size mm:86*86*34

Funciton:With IR&DAYLIGHT Sensor

5CCT Turnable: 2700K-5700K (2700K-3000K-3500K-4000K-5700K)

Materials: Body: die-casting aluminum

SMS Series- Iron Magnetic Cover

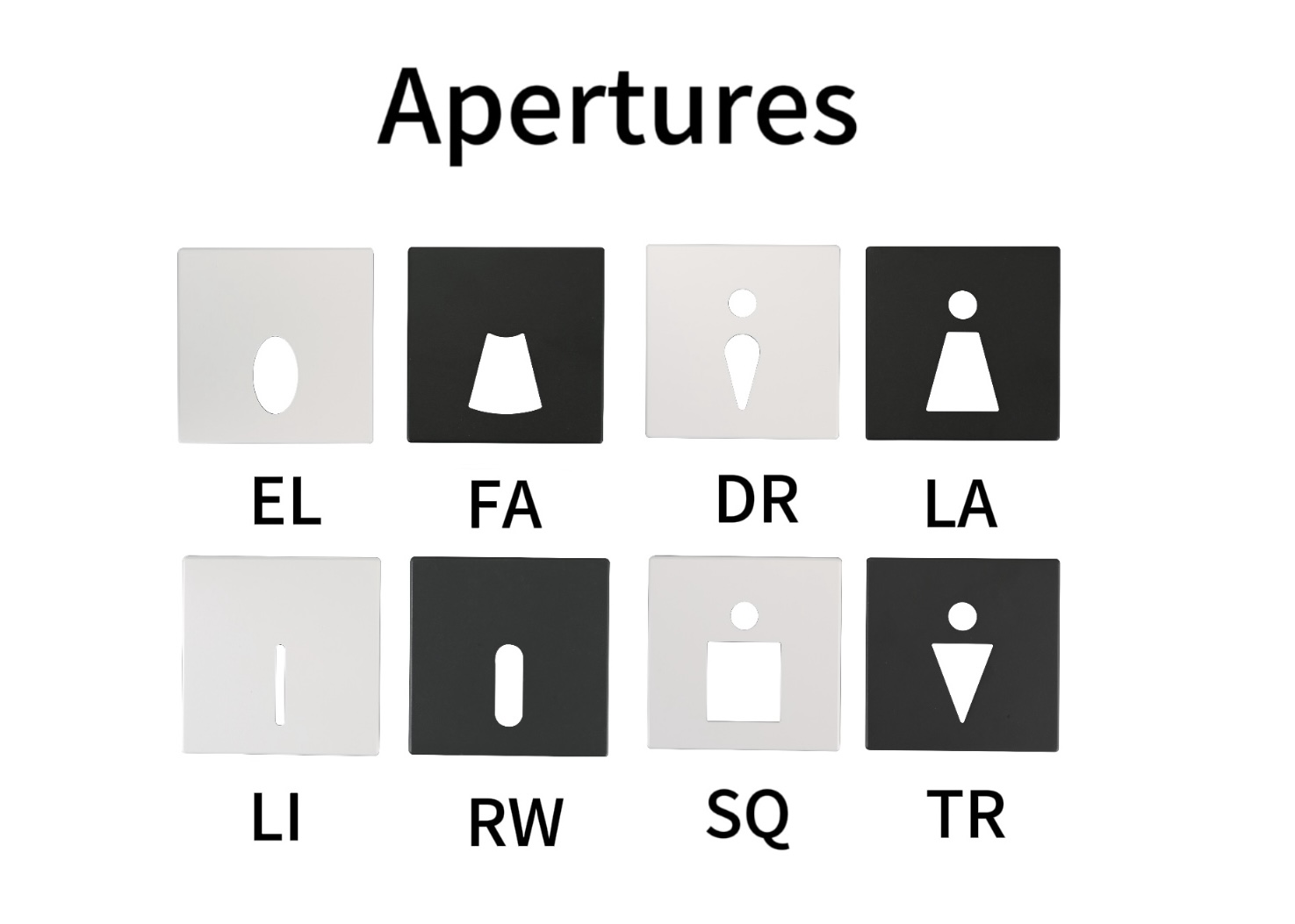

Optional aperture: LI(Line) / LA(Ladder) / EL(Ellipse) / DR:(Drop) / RW(Runway) / FA(Fan) / SQ(Square) / TR(Triangle)

Color: Powder coating: White/Black/Grey

Fixed with:Screw / Clips

Match wtih Cavtiy wall box: UK: 86x86 mm box(not provided)

Features : Energy saving

Easy installation

waterproof structures

Changeable magnetic cover

Remark: ** xx means there are various apertures of the surface of SMS-S86 series . The surface can be optional with different aperture as LI , LA , EL , DR , RW , FA ,SQ , TR and so on. For example , SMS-S86TR means this aperture of the surface is TR .

Step Light : Recessed wall light, stair light, stair lamp, step lighting.
