STS-S80xx** - ECO IP20 MAGNETIC STEP LIGHT SERIES

SPECIFICATIONS

Item No:STS-S80xx**

Universal Input Voltage:90-240V

Wattage: 1.5W

IP Rate: IP20

Type of Protection: Class II

Size mm: 80*80*36.8mm

Funciton:With IR&DAYLIGHT Sensor

3CCT Turnable: 3000K-6000K (3000K-4500K-6000K)

Body: Plastic PC

STS Series Surface Materials Cover: Iron

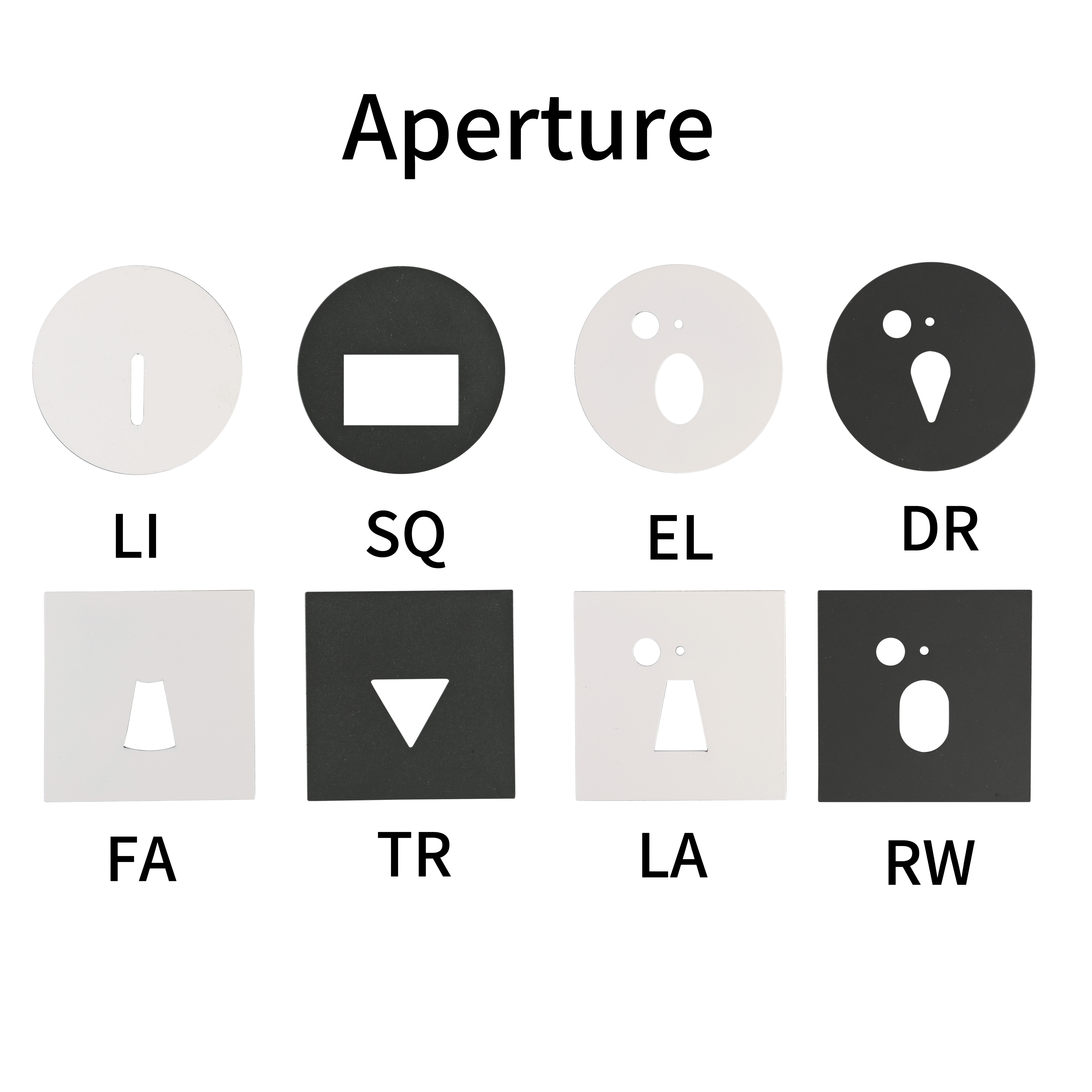

Optional aperture:LI(Line) / LA(Ladder) / EL(Ellipse) / DR:(Drop) / RW(Runway) / FA(Fan) / SQ(Square) / TR(Triangle)

Color:Powder Coating: White/Grey/Black

Fixed with:Screws

Match wtih Cavtiy wall box:EU: Φ68 mm box (not provided)

Features : Energy saving

Easy installation

Push-in Terminal Block

Changeable magnetic cover

Remark: ** xx means there are various apertures of the surface of STS-S80 series . The surface can be optional with different aperture as LI , LA , EL , DR , RW , FA , SQ , TR and so on. For example , STS-S80FA means this aperture of the surface is FA

Step Light : Recessed wall light, stair light, stair lamp, step lighting
