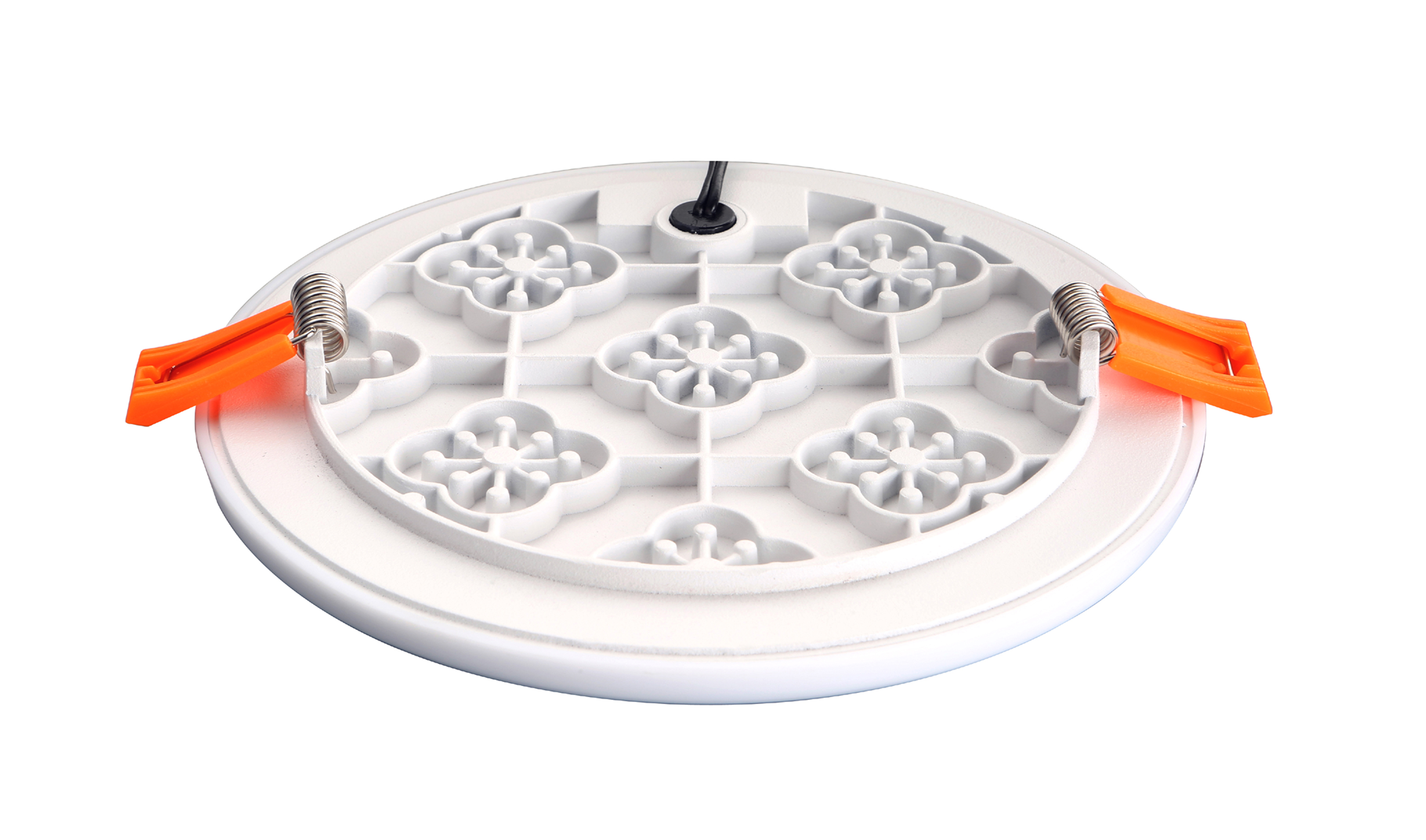

NSDL-R100

Features-Frameless design/Waterpoof IP66/Aluminum heat sink good heat disspation/Ultra thin ,only 9mm thickness/Acrylic light guide plate

SPECIFICATIONS

Item No.: NSDL-R100

Size：φ100*20mm

Cut-hole size: φ80mm

Heat-sink Materails:Die-casting Aluminum

Frame color:White

Wattage:8W

Input voltage:220-240V

Working current: 250mA

Wokring voltage: 24V

Lumen output:580lm

Color temperature:3000/4000/6000K

CRI:Ra80,Ra90 optinoal

Beam angle:110°±10°

IP rate:IP66 for front
