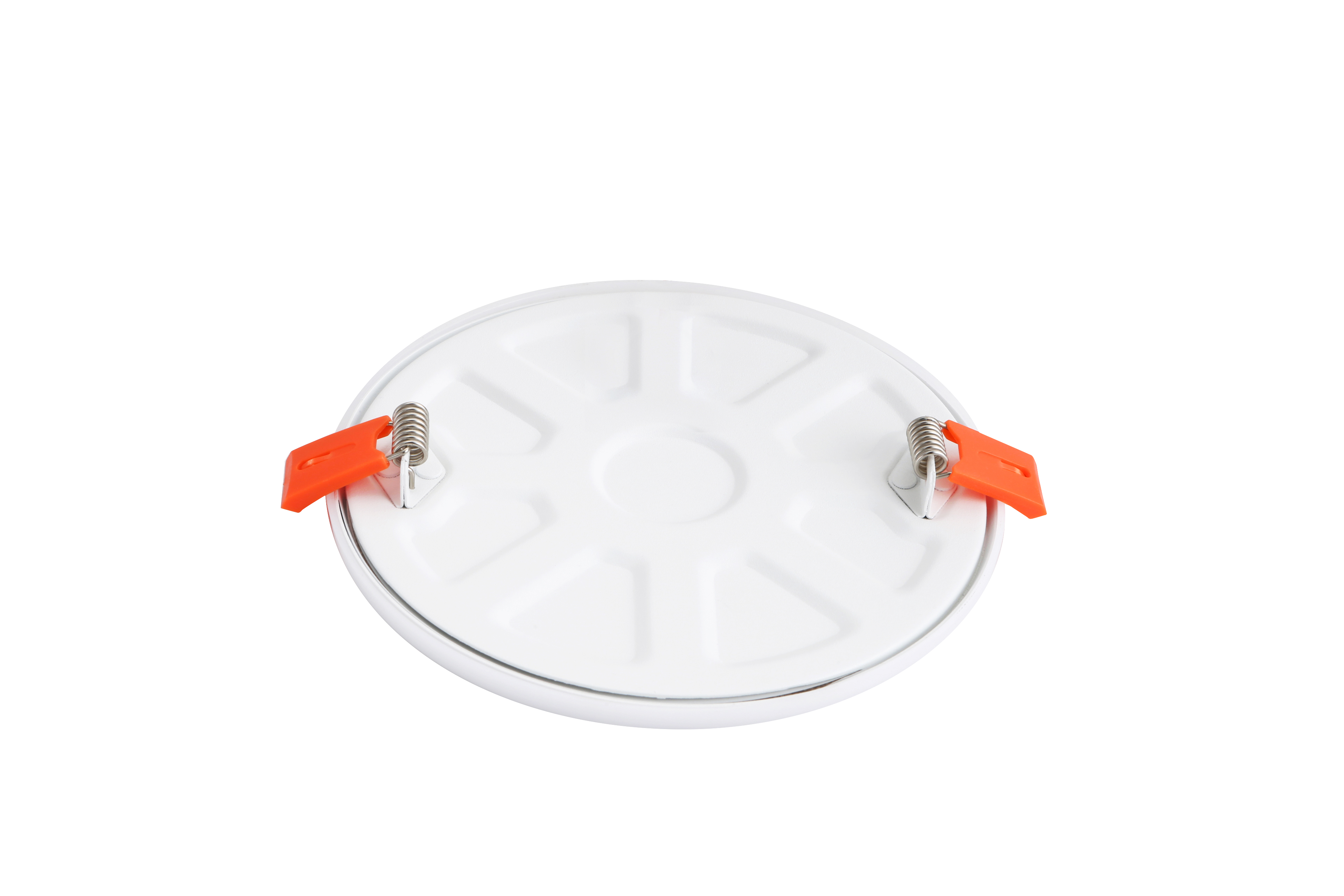

DSDL-R215

Features-Frameless design/ Surface mounted bracket optional/Ultra thin ,only 9mm thickness/Acrylic light guide plate/Front IP65

SPECIFICATIONS

Item No.: DSDL-R215

Size：φ215*20mm

Heat-sink Materails:Aluminum

Frame color:White

Wattage:28W

Input voltage:220-240V

Working current: 600mA

Wokring voltage: 36V

Lumen output:2700lm

Color temperature:3000/4000/6000K

CRI:Ra80

Beam angle:110°±10°

IP rate:IP65 for Front
