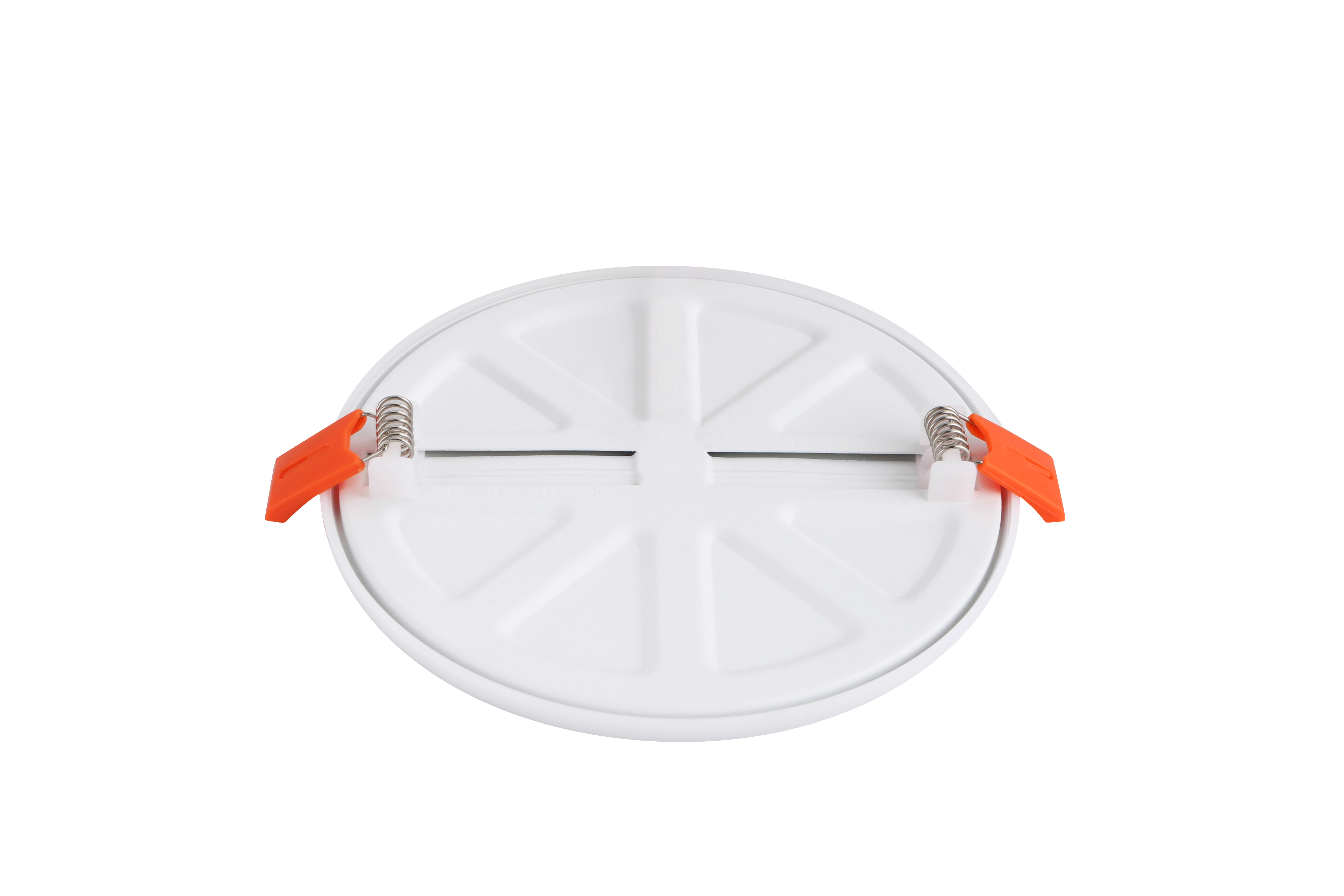

ASDL-R75

Features-Frameless design/Adjustable cut-hole size/Ultra thin ,only 9mm thickness/Acrylic light guide plate

SPECIFICATIONS

Item No.: ASDL-R75

Lamp Size：φ75*20mm

Cut-hole size:φ45~55mm

Heat-sink Materails:Aluminum

Frame color:White

Wattage:6W

Input voltage:220-240V

Working current: 250mA

Wokring voltage: 18V

Lumen output:410lm

Color temperature:3000/4000/6000K

CRI:Ra80

Beam angle:110°±10°

IP rate:IP20
