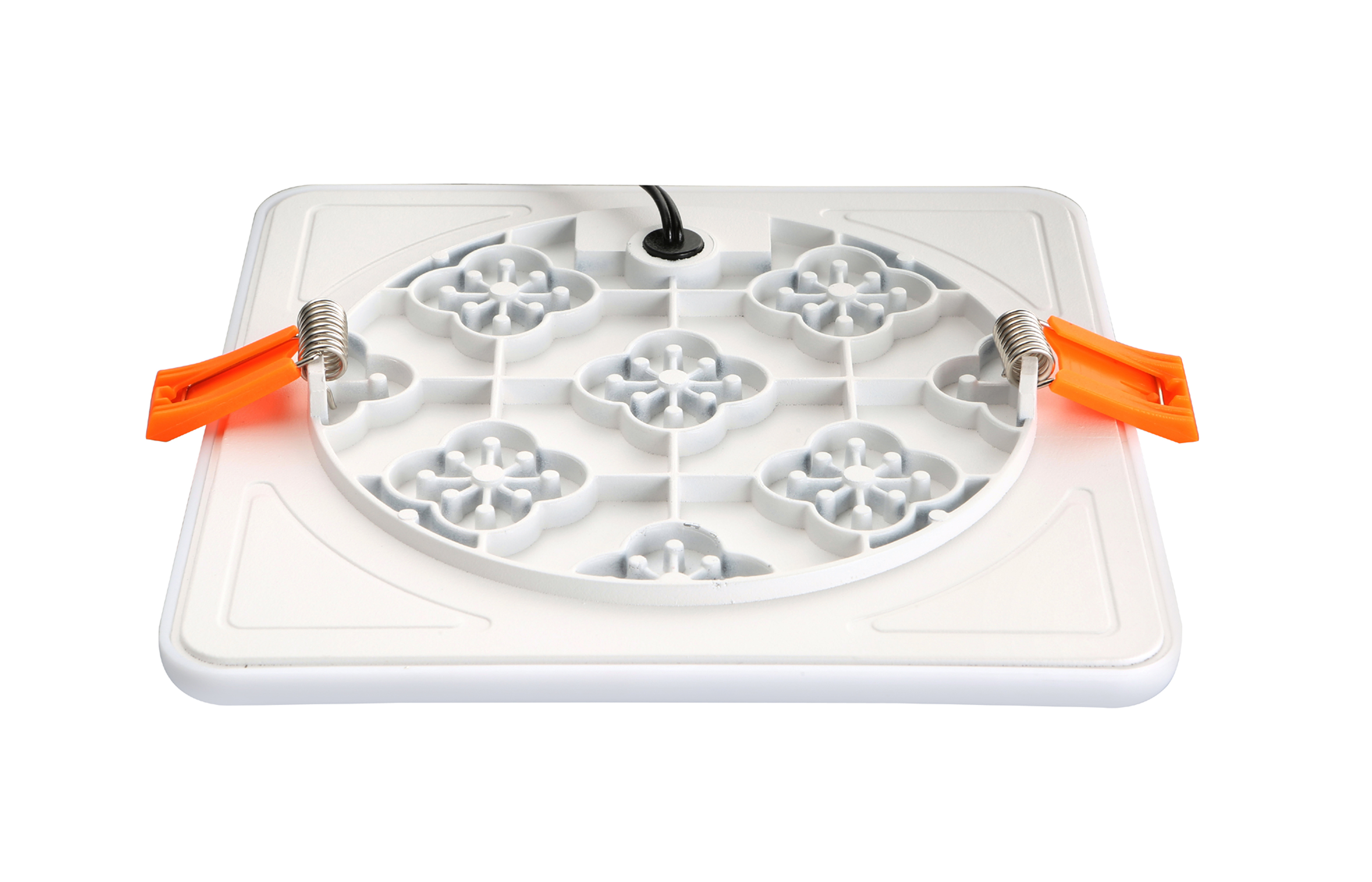

NSDL-S185
Features-Frameless design/Waterpoof IP66/Surface mounted barcket optional/Aluminum heat sink good heat disspation/Ultra thin ,only 9mm thickness
SPECIFICATIONS
Item No.: NSDL-S185
Size：185*185*20mm
Cut-hole size: φ165mm
Heat-sink Materails:Die-casting Aluminum
Frame color:White
Wattage:22W
Input voltage:220-240V
Working current: 700mA
Wokring voltage:24V
Lumen output:1789lm
Color temperature:3000/4000/6000K
CRI:Ra80,Ra90 optinoal
Beam angle:110°±10°
IP rate:IP66 for front
*Die-casting aluminum surface mounted bracket optional
