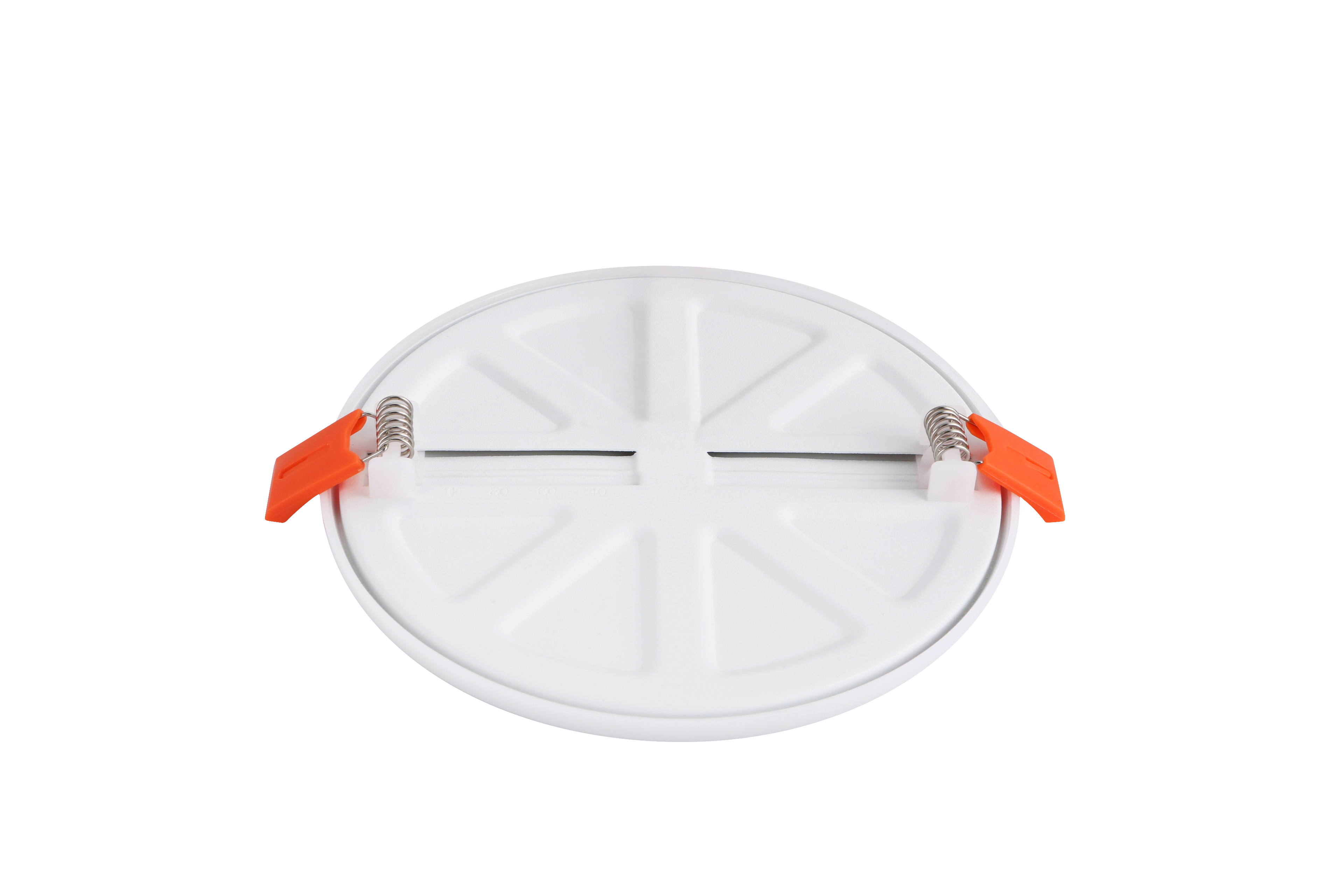

ASDL-R215

Features-Frameless design/Adjustable cut-hole size/Surface mounted bracket optional/Ultra thin ,only 9mm thickness

SPECIFICATIONS

Item No.: ASDL-R215

Lamp Size：φ215*20mm

Cut-hole size:φ45~190mm

Heat-sink Materails:Aluminum

Frame color:White

Wattage:28W

Input voltage:220-240V

Working current: 600mA

Wokring voltage: 36V

Lumen output:2100lm

Color temperature:3000/4000/6000K

CRI:Ra80

Beam angle:110°±10°

IP rate:IP20
